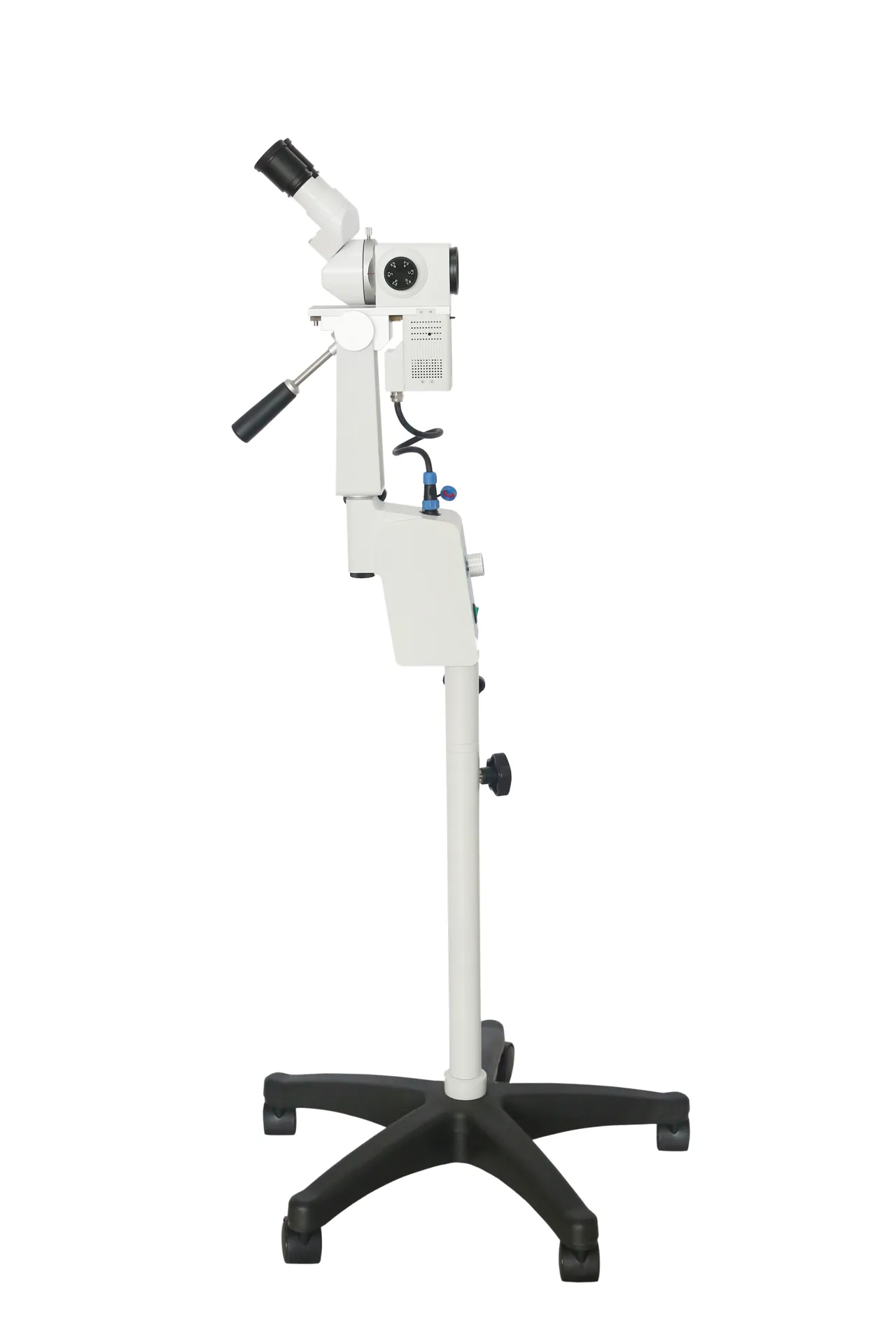

COLP-199 Colposcope
Advanced colposcope with high-precision optical system
Product Features
- 5-step magnification system
- 45 degree inclined binoculars
- High-intensity LED lighting
- Manual rack and pinion focusing
- 360 degree rotation
Product Details
COLP-199 Colposcope
Key Advantages
-
Advanced Optical System
- 45 degree inclined binoculars f’=125mm
- 5-step magnification changer (0.4X/0.6X/1.0X/1.6X/2.5X)
- 12.5X high-eyepoint, wide angular eyepiece
-
Superior Visualization
- Total magnification range: 2.8X to 17X
- Visual field range: 80mm to 12.5mm
- 50,000 Lux LED illumination with coaxial lighting
-
Ergonomic Design
- Floor type with 360 degree rotation
- Height adjustment from 1000mm to 1170mm
- 40mm focusing range with manual rack and pinion adjustment
Detailed Specifications
Optical System
- Binoculars: 45 degree inclined binoculars f’=125mm
- Objective lens: f’=300mm
- Eyepiece: 12.5x, high-eyepoint, wide angular
- Diopter adjustment: -5D to +5D
- Magnification changer of 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
- Total magnifications: 2.8x, 4x, 7x, 11.5x, 17x
- Visual field: 80mm to 12.5mm
- Interpupillary distance: 55mm to 75mm
- Focusing: 40mm with manual adjustment of rack and pinion
- Working distance: 295mm
Illumination
- Coaxial illumination
- Cold light source: Built-in LED bulb, 30W
- Field of illumination: 80mm
- Power supply: AC110V-220V 100W
- Light intensity: 50,000 LUX
- Filter: green
Column and Base
- Type: Floor type
- Rotation angle: 360 degree
- Height from objective to floor: 1000mm to 1170mm
- Base size: 600mm
Optional Accessories
- Binoculars: Straight f’=160mm
- Objective lens: f’=250mm, 350mm, 400mm
- Integrated beamsplitter & adaptor: dismountable, f’=65mm
- HDMI/4K Camera
- Software available
Technical Specifications
- Binoculars
- 45 degree inclined binoculars f=125mm
- Eyepiece
- 12.5X high-eyepoint, wide angular
- Objective lens
- f=300mm
- Magnification changer
- 0.4X/0.6X/1.0X/1.6X/2.5X
- Light intensity
- 50,000 Lux
- Working distance
- 295mm
