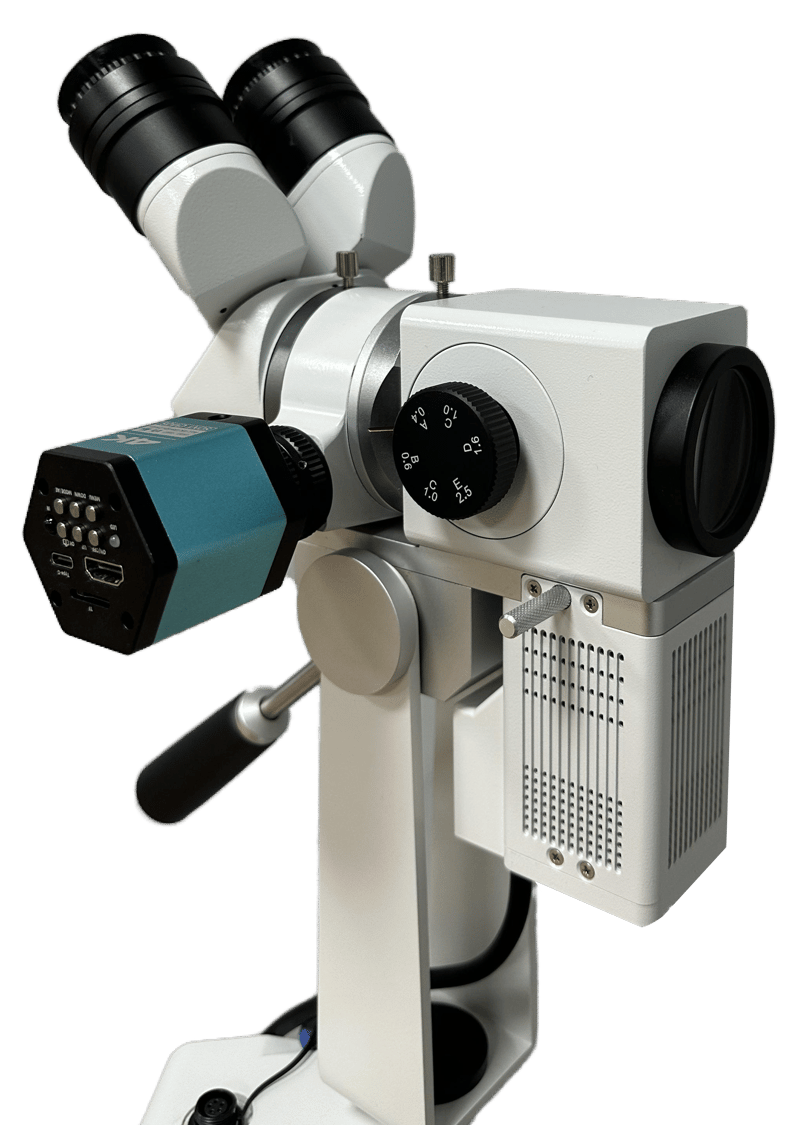

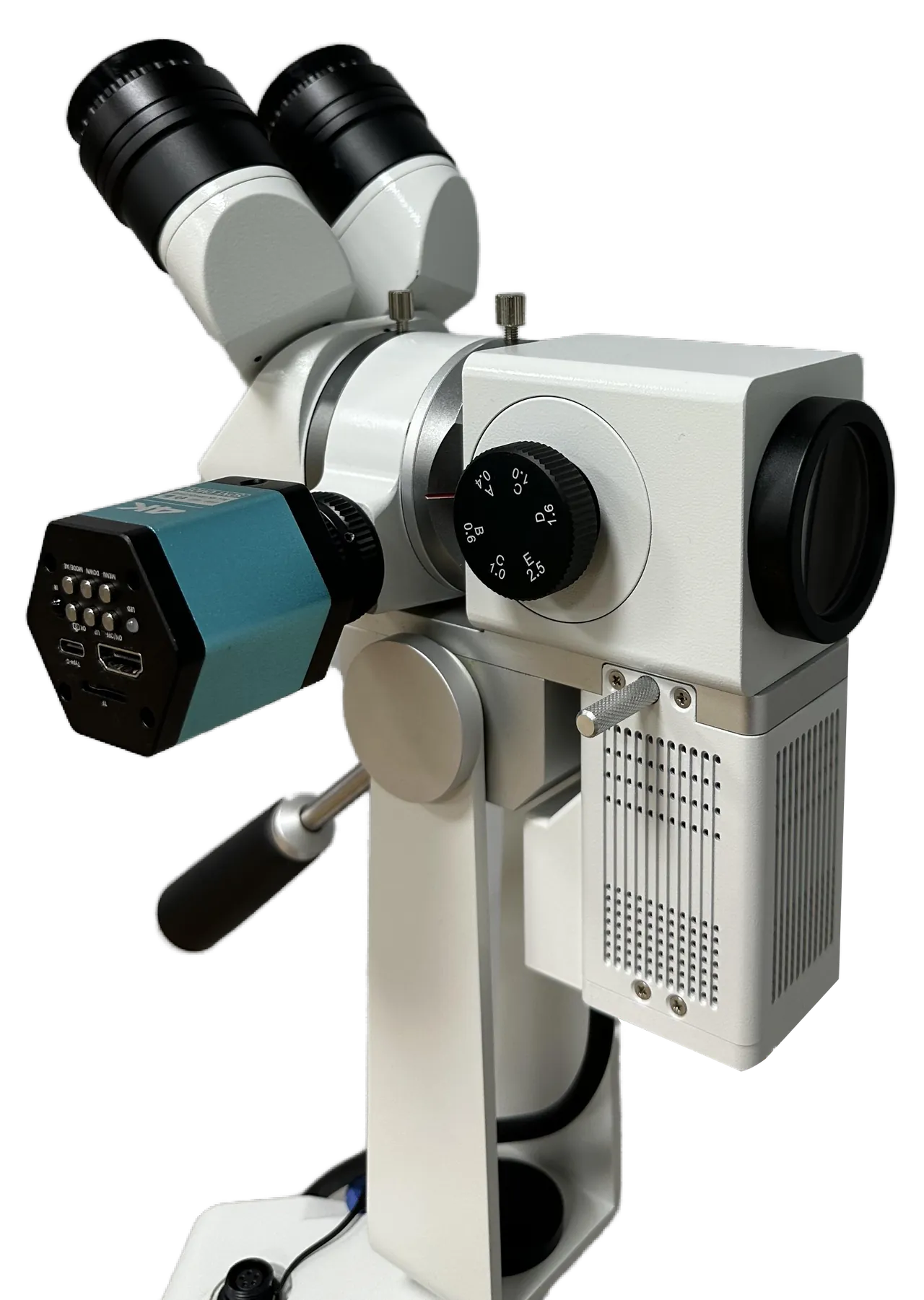

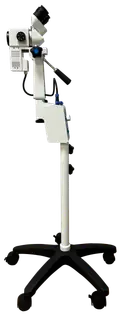

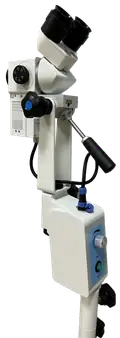

Colpo-299 Colposcope

Key Advantages

1. Advanced Optical System

   • 45 degree inclined binocular f=170mm
   • 5-step magnification changer (0.4X/0.6X/1.0X/1.6X/2.5X)
   • 12.5X widefield eyepiece with adjustable eyecup

2. Superior Visualization

   • Enhanced total magnification range: 3.4X to 21.2X
   • Visual field range: 65mm to 10mm
   • 80,000 Lux LED illumination with coaxial lighting

3. Precision Optics

   • Extended diopter adjustment range: -7D to +7D
   • 40mm focusing range with manual rack and pinion adjustment
   • 360 degree rotation for optimal positioning

Detailed Specifications

Optical System

• Binoculars: 45 degree inclined binocular f=170mm
• Objective lens: f=300mm
• Eyepiece: 12.5X, widefield with adjustable eyecup
• Diopter adjustment: -7D to +7D
• Magnification changer of 5 steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
• Total magnification: 3.4X, 5.4X, 8.5X, 13.5X, 21.2X
• Visual field: 65mm to 10mm
• Interpupillary distance: 55mm to 75mm
• Focusing: 40mm with manual adjustment of rack and pinion
• Working distance: 295mm

Illumination

• Coaxial illumination
• Light source: Built-in LED bulb, 30W
• Field of illumination: 70mm
• Power supply: AC110V-220V 100W
• Light intensity: 80,000 Lux
• Filter: green

Column and Base

• Rotation angle: 360 degree
• Base size: 600mm
• Height from objective to floor: Min.1000mm / Max.1170mm

Optional Accessories

• Binocular: straight f=170mm
• Objective lens: f=250mm, 350mm
• Integrated Beamsplitter & adaptor: dismountable f’=65mm
• HDMI/4K camera
• Software available
