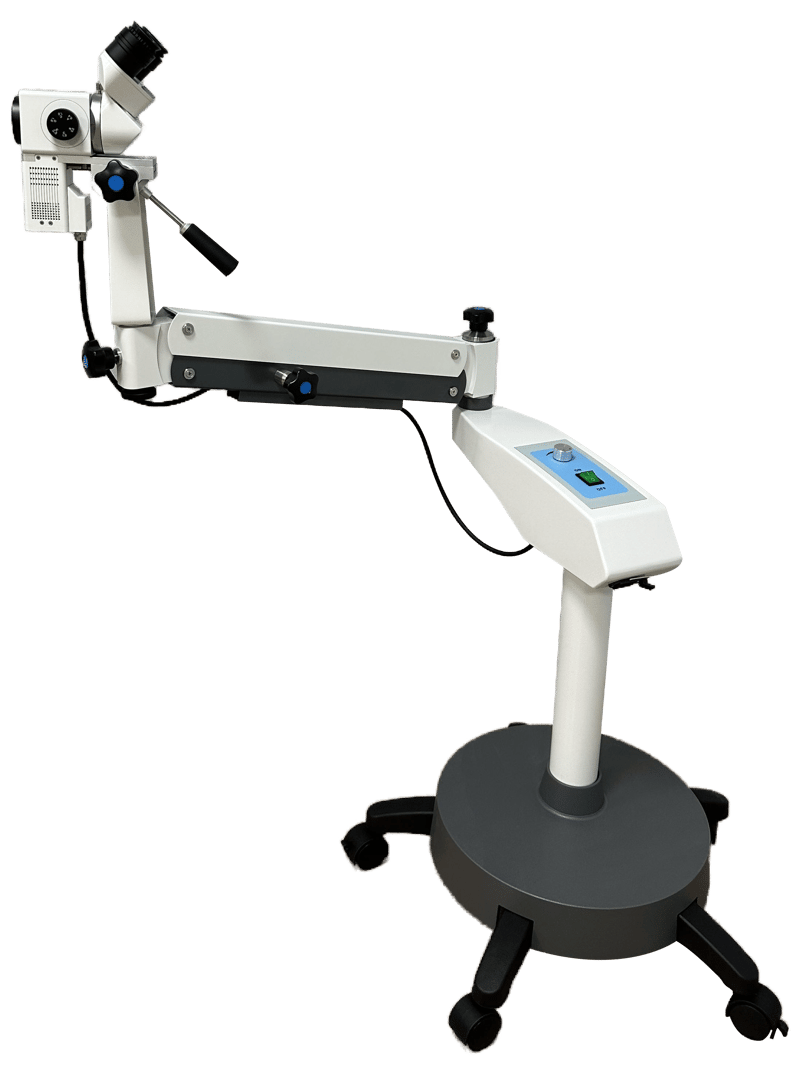

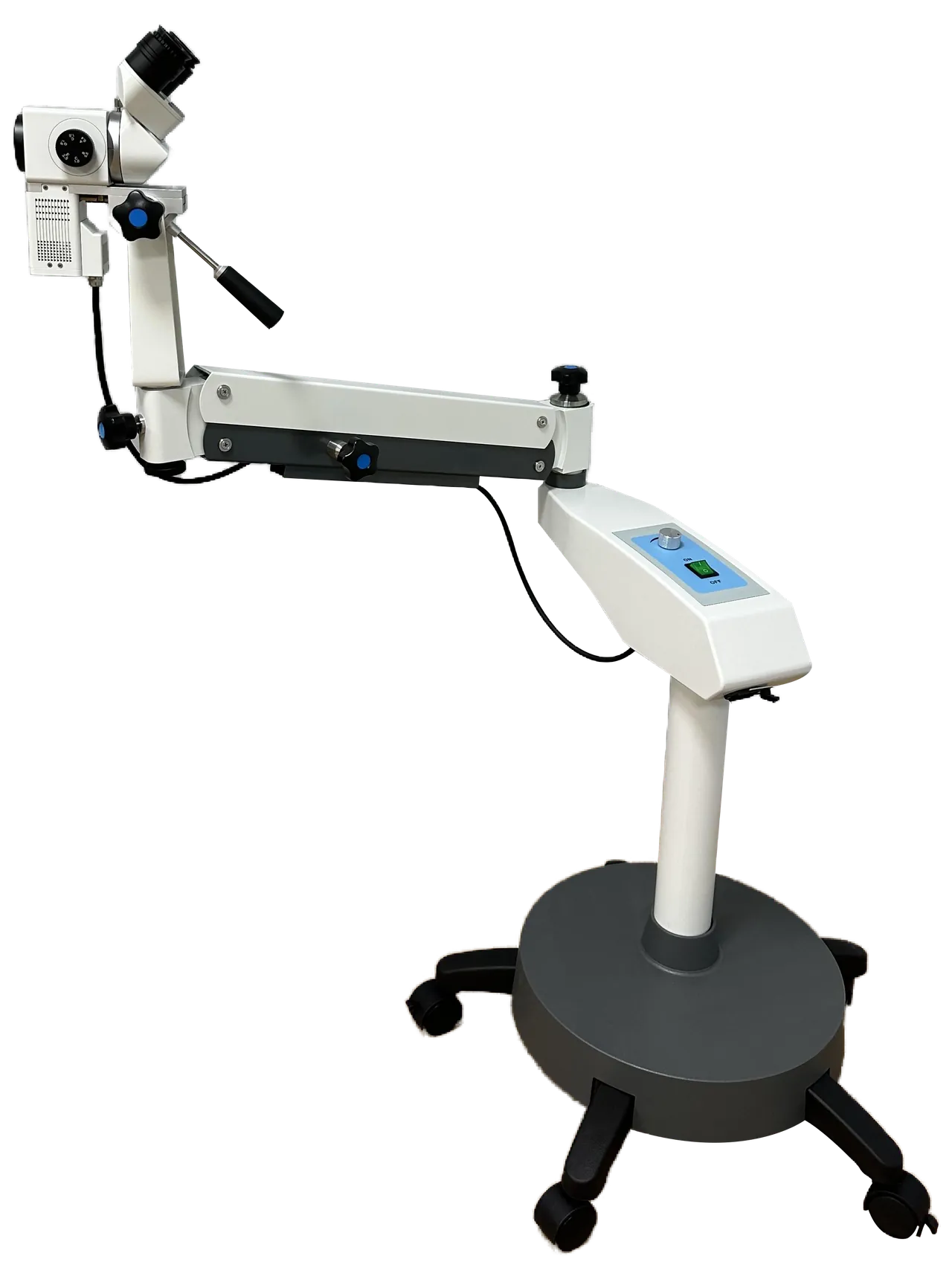

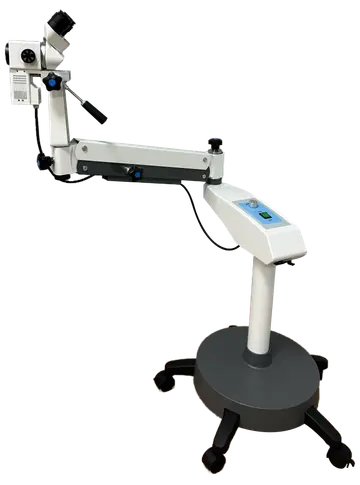

Colpo-299 Plus Colposcope Colpo-299 Plus Colposcope

Colpo-299 Plus Colposcope

Premium colposcope with pantographic arm and enhanced optical performance

Product Features

  • 5-step magnification system
  • 45 degree inclined binoculars
  • Superior 80,000 Lux LED lighting
  • Pantographic arm with 1040mm range
  • 270 degree rotation
Inquire About Product

Product Details

Colpo-299 Plus Colposcope

Key Advantages

  1. Advanced Optical System

    • 45 degree inclined binocular f=170mm
    • 5-step magnification changer (0.4X/0.6X/1.0X/1.6X/2.5X)
    • 12.5X widefield eyepiece with adjustable eyecup
  2. Superior Visualization

    • Enhanced total magnification range: 3.4X to 21.2X
    • Visual field range: 65mm to 10mm
    • 80,000 Lux LED illumination with coaxial lighting
  3. Enhanced Flexibility

    • Pantographic arm with 1040mm range
    • 270 degree rotation angle
    • Height adjustment from 1000mm to 1350mm
    • Smooth positioning for optimal viewing angles

Detailed Specifications

Optical System

  • Binoculars: 45 degree inclined binocular f=170mm
  • Objective lens: f=300mm
  • Eyepiece: 12.5X, widefield with adjustable eyecup
  • Diopter adjustment: -7D to +7D
  • Magnification changer of 5 steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
  • Total magnification: 3.4X, 5.4X, 8.5X, 13.5X, 21.2X
  • Visual field: 65mm to 10mm
  • Interpupillary distance: 55mm to 75mm
  • Focusing: 40mm with manual adjustment of rack and pinion
  • Working distance: 295mm

Illumination

  • Coaxial illumination
  • Light source: Built-in LED bulb, 30W
  • Field of illumination: 70mm
  • Power supply: AC110V-220V 100W
  • Light intensity: 80,000 Lux
  • Filter: green

Column and Base

  • Pantographic arm with range of 1040mm
  • Rotation angle: 270 degree
  • Base size: 600mm
  • Height from objective to floor: Min.1000mm / Max.1350mm

Optional Accessories

  • Binocular: straight f=170mm
  • Objective lens: f=250mm, 350mm
  • Integrated Beamsplitter & adaptor: dismountable f’=65mm
  • HDMI/4K camera
  • Software available
  • Bracket for monitor
  • Monitor

Technical Specifications

Binoculars
45 degree inclined binocular f=170mm
Eyepiece
12.5X widefield with adjustable eyecup
Objective lens
f=300mm
Magnification changer
0.4X/0.6X/1.0X/1.6X/2.5X
Light intensity
80,000 Lux
Working distance
295mm
