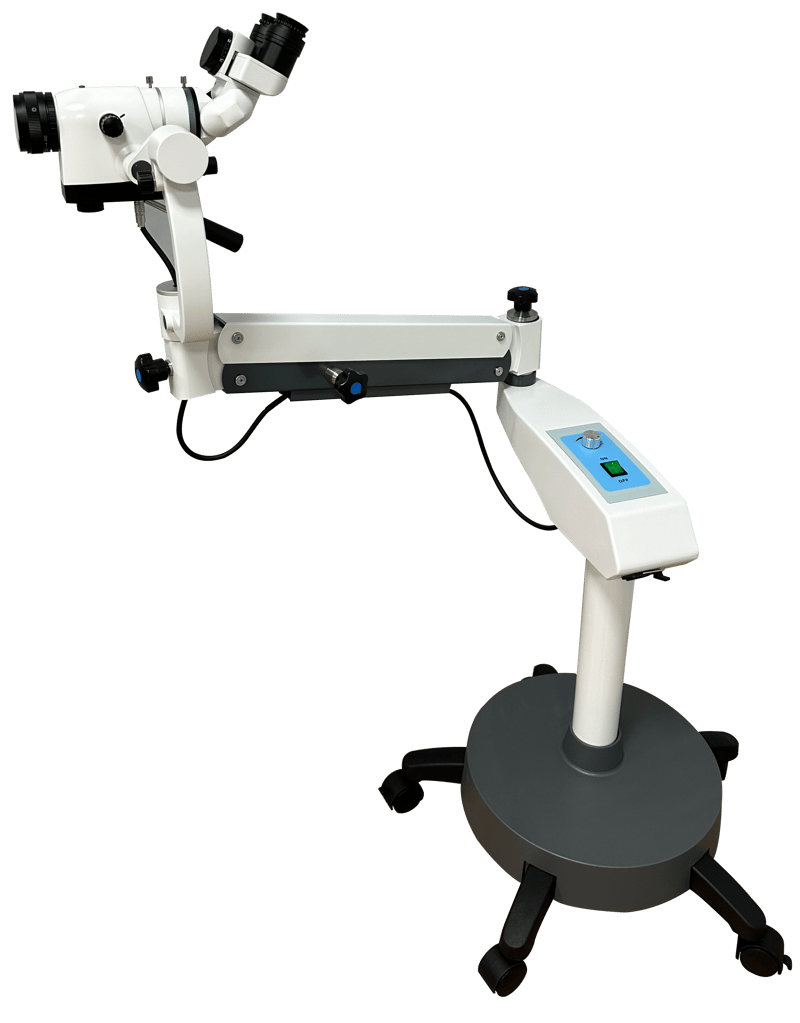

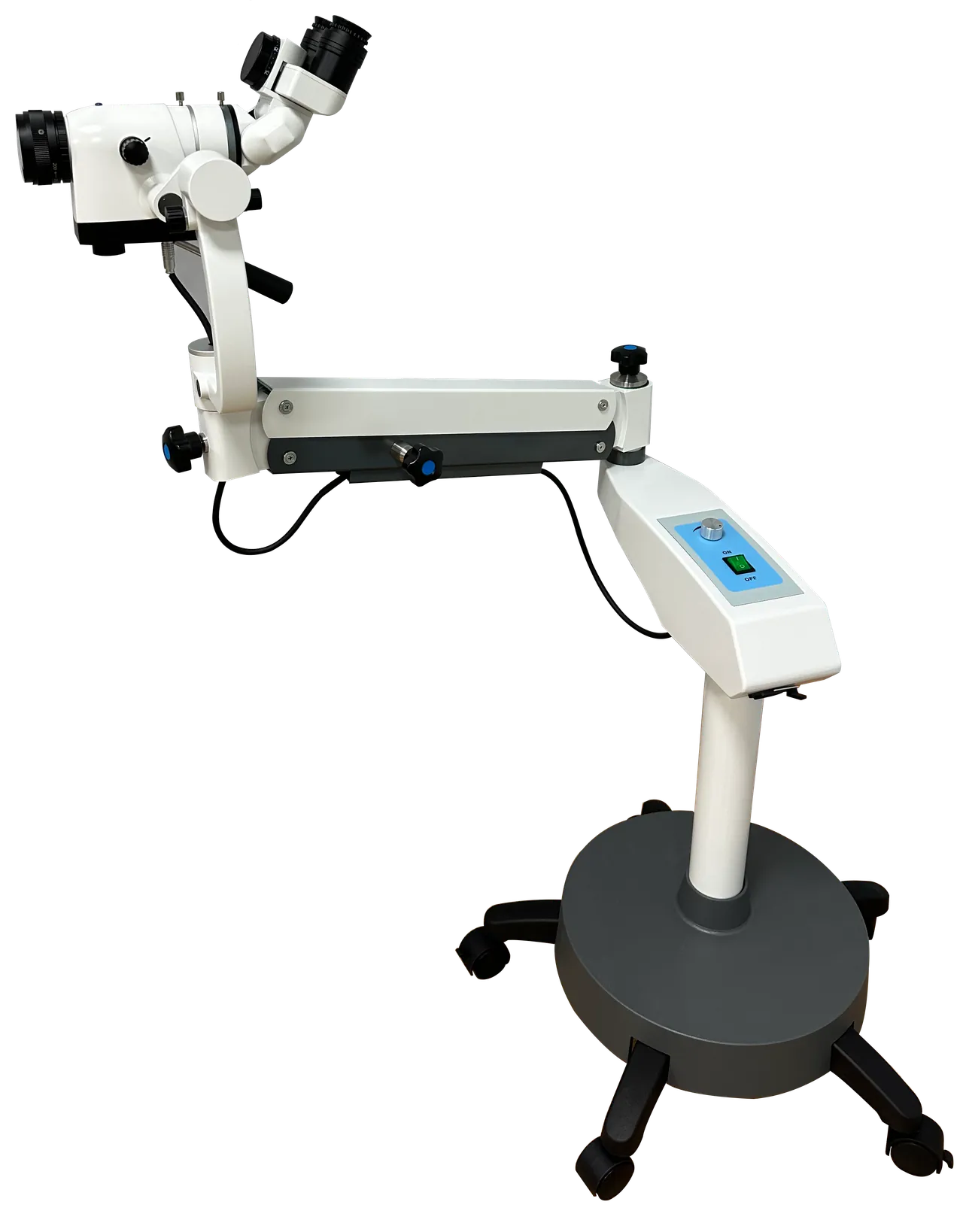

Colpo-399 Colposcope

Key Advantages

1. Advanced Optical System

   • 0-180 degree inclinable binocular for optimal viewing angle
   • Vario focal lens f’=200-400mm for adjustable working distance
   • 5-step magnification changer (0.4X/0.6X/1.0X/1.6X/2.5X)
   • 12.5X widefield eyepiece with adjustable eyecup

2. Superior Visualization

   • Enhanced total magnification range: 3.4X to 21.2X
   • Visual field range: 65mm to 10mm
   • 80,000 Lux LED illumination with coaxial lighting

3. Premium Flexibility

   • Supporting arm with balance system for effortless positioning
   • Pantographic arm with 1040mm range
   • 270 degree rotation angle
   • Height adjustment from 1000mm to 1350mm

Detailed Specifications

Optical System

• Binoculars: 0-180 degree inclinable binocular
• Vario focal lens: f’=200-400mm
• Eyepiece: 12.5X, widefield with adjustable eyecup
• Diopter adjustment: -7D to +7D
• Magnification changer of 5 steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
• Total magnification: 3.4X, 5.4X, 8.5X, 13.5X, 21.2X
• Visual field: 65mm to 10mm
• Interpupillary distance: 55mm to 75mm

Illumination

• Coaxial illumination
• Light source: Built-in LED bulb, 30W
• Field of illumination: 70mm
• Power supply: AC110V-220V 100W
• Light intensity: 80,000 Lux
• Filter: green

Column and Base

• Supporting arm with balance
• Pantographic arm with range of 1040mm
• Rotation angle: 270 degree
• Base size: 600mm
• Height from objective to floor: Min.1000mm / Max.1350mm

Optional Accessories

• Integrated Beamsplitter & adaptor: dismountable f’=65mm
• HDMI/4K camera
• Software available
• Bracket for monitor
• Monitor
