D580 Dental Operation Microscope D580 Dental Operation Microscope

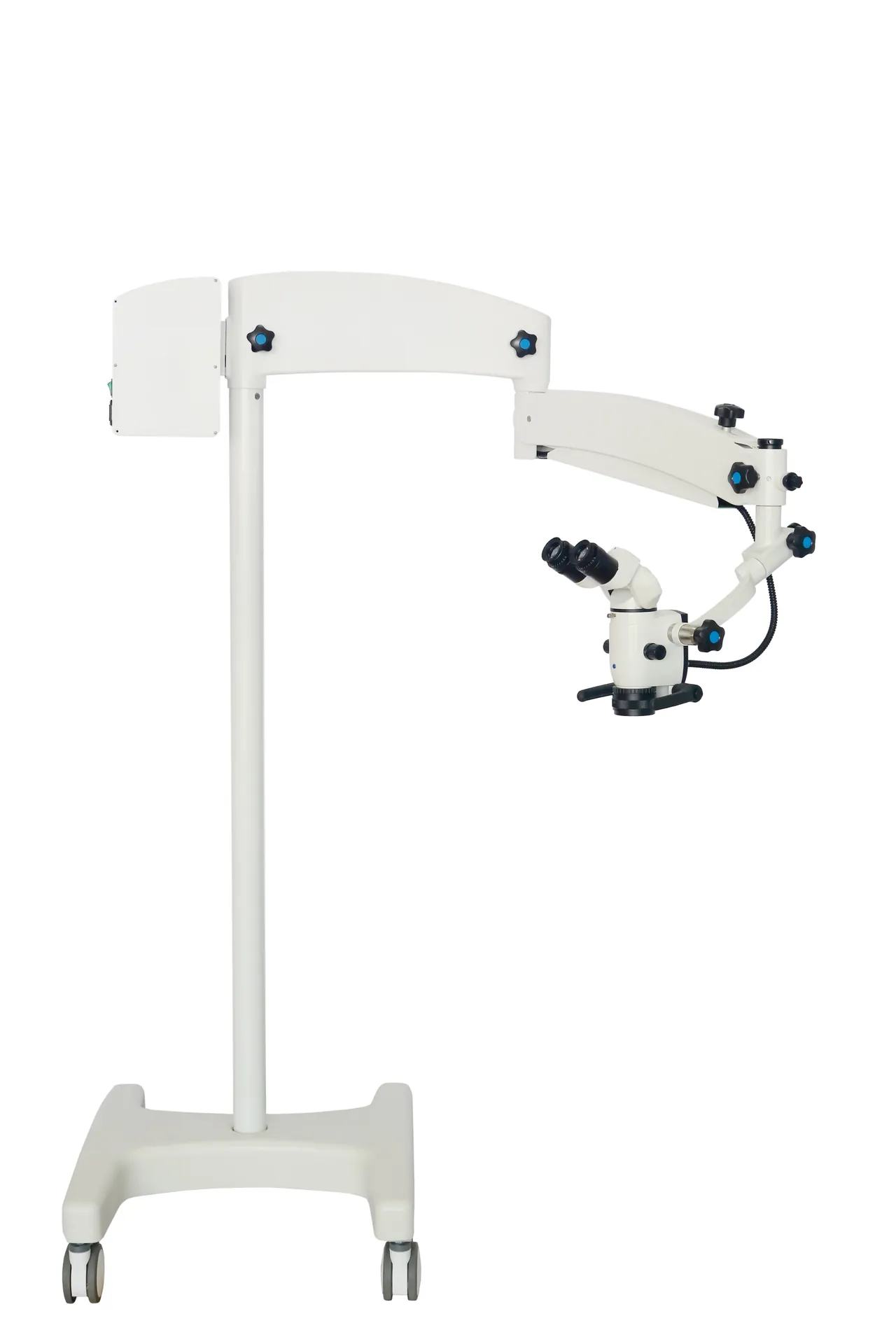

D580 Dental Operation Microscope

High-precision dental microscope with advanced optical system

Product Features

  • 5-step magnification system
  • 45 degree inclined binocular
  • High-intensity LED lighting
  • Fine focus adjustment
  • Multiple mounting options
Inquire About Product

Product Details

D580 Dental Operation Microscope

Key Advantages

  1. Advanced Optical System

    • 5-step magnification changer (0.4X/0.6X/1.0X/1.6X/2.5X)
    • 45 degree inclined binocular
    • 12.5X widefield eyepiece with adjustable eyecup
  2. Superior Visualization

    • Total magnification range: 3.4X to 21.2X
    • Vision field range: 65mm to 10mm
    • 50,000 Lux LED illumination with optic fiber cable
  3. Versatile Applications

    • Multiple mounting options: Ceiling, Wall-mount, Fixed floor, Table mount
    • Manual fine focus with 12mm range
    • Green/yellow filters for enhanced tissue contrast

Optional Features

  • F=200-300mm vario focal lens
  • 0-180 degree binocular
  • Built-in camera system
  • Beamsplitter (dual port) with adaptor
  • Integrated beamsplitter & adaptor (single port)
  • HDMI camera
  • 4K camera
  • Bracket for monitor
  • Monitor

Detailed Specifications

  • Total magnification and vision field:
    • 3.4X (65mm)
    • 5.X (42mm)
    • 8.5X (26mm)
    • 13.5X (16mm)
    • 21.2X (10mm)
  • F=250mm objective lens with fine focus (manual, with range of 12mm)
  • LED: 50 Watts (with optic fiber cable)
  • Light intensity: 50,000 Lux
  • Filters: green/yellow

Technical Specifications

Magnification changer
0.4X/0.6X/1.0X/1.6X/2.5X
Eyepiece
12.5X widefield with adjustable eyecup
Objective lens
F=250mm with 12mm fine focus range
LED power
50 Watts
Light intensity
50,000 Lux
Filters
Green/Yellow
