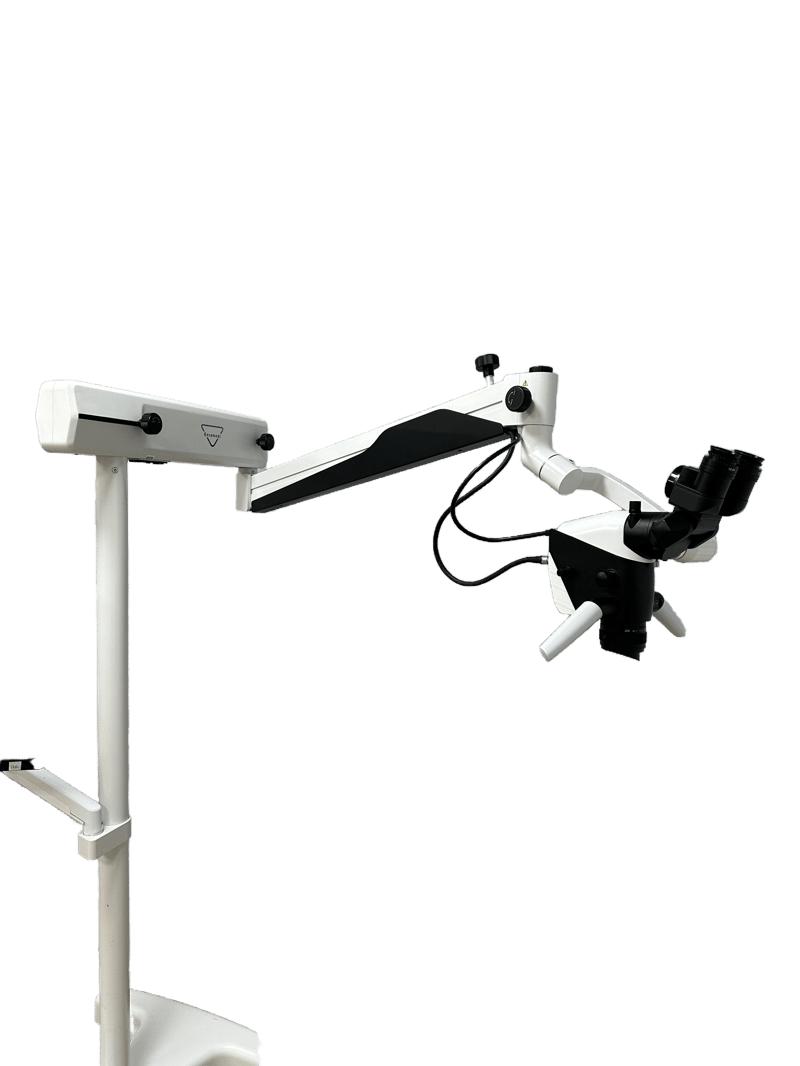

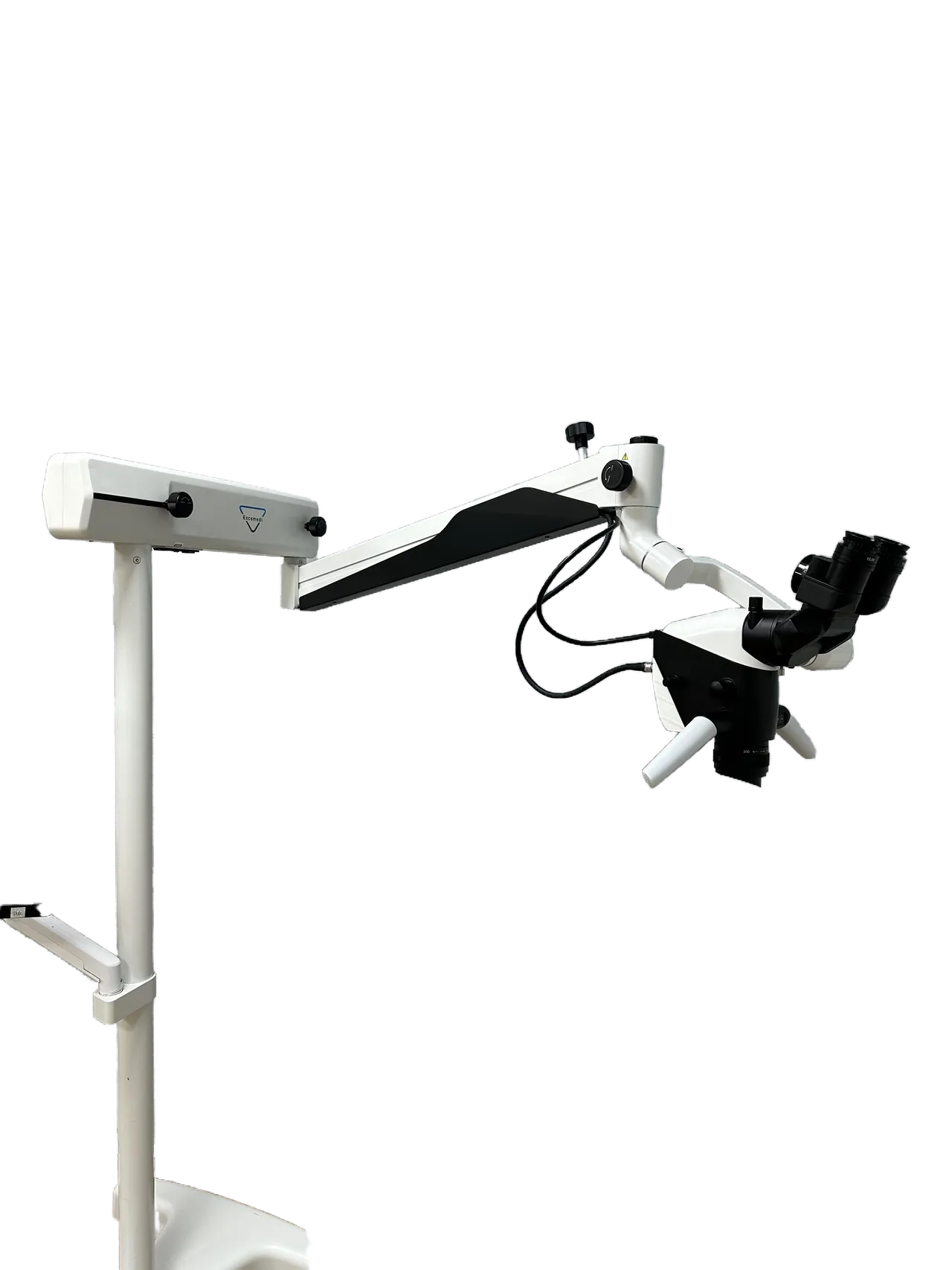

D680 Plus Dental Operation Microscope D680 Plus Dental Operation Microscope

D680 Plus Dental Operation Microscope

Advanced dental microscope with fashionable & elegant arm design and built-in 4K camera

Product Features

  • 5-step magnification system
  • 0-180 degree inclinable binocular
  • Built-in LED lighting system
  • Variable focal lens (180-460mm)
  • Built-in 4K camera system
Inquire About Product

Product Details

D680 Plus Dental Operation Microscope

Key Advantages

  1. Premium Optical System

    • 5-step magnification changer (0.4X/0.6X/1.0X/1.6X/2.5X)
    • 0-180 degree inclinable binocular for optimal positioning
    • 12.5X widefield eyepiece with adjustable eyecup
  2. Superior Visualization

    • Total magnification range: 3.4X to 21.2X
    • Vision field range: 65mm to 10mm
    • 50,000 Lux built-in LED lighting system (20 watts)
  3. Advanced Features

    • New fashionable & elegant arm design
    • Variable focal lens (F=180-460mm)
    • Pendulum function for enhanced flexibility
    • Balanced arm for smooth positioning
    • Built-in 4K camera system for documentation

Optional Accessories

  • Bracket for monitor
  • Monitor

Detailed Specifications

  • Total magnification and vision field:
    • 3.4X (65mm)
    • 5.X (42mm)
    • 8.5X (26mm)
    • 13.5X (16mm)
    • 21.2X (10mm)
  • Built-in LED lighting system (20 watts)
  • Light intensity: 50,000 Lux
  • Filters: green/yellow
  • F=180-460mm variable focal lens
  • 0-180 degree inclinable binocular
  • Pendulum function
  • Balanced arm
  • Built-in 4K camera system

Technical Specifications

Magnification changer
0.4X/0.6X/1.0X/1.6X/2.5X
Eyepiece
12.5X widefield with adjustable eyecup
Focal lens
F=180-460mm variable
LED power
20 Watts
Light intensity
50,000 Lux
Filters
Green/Yellow
