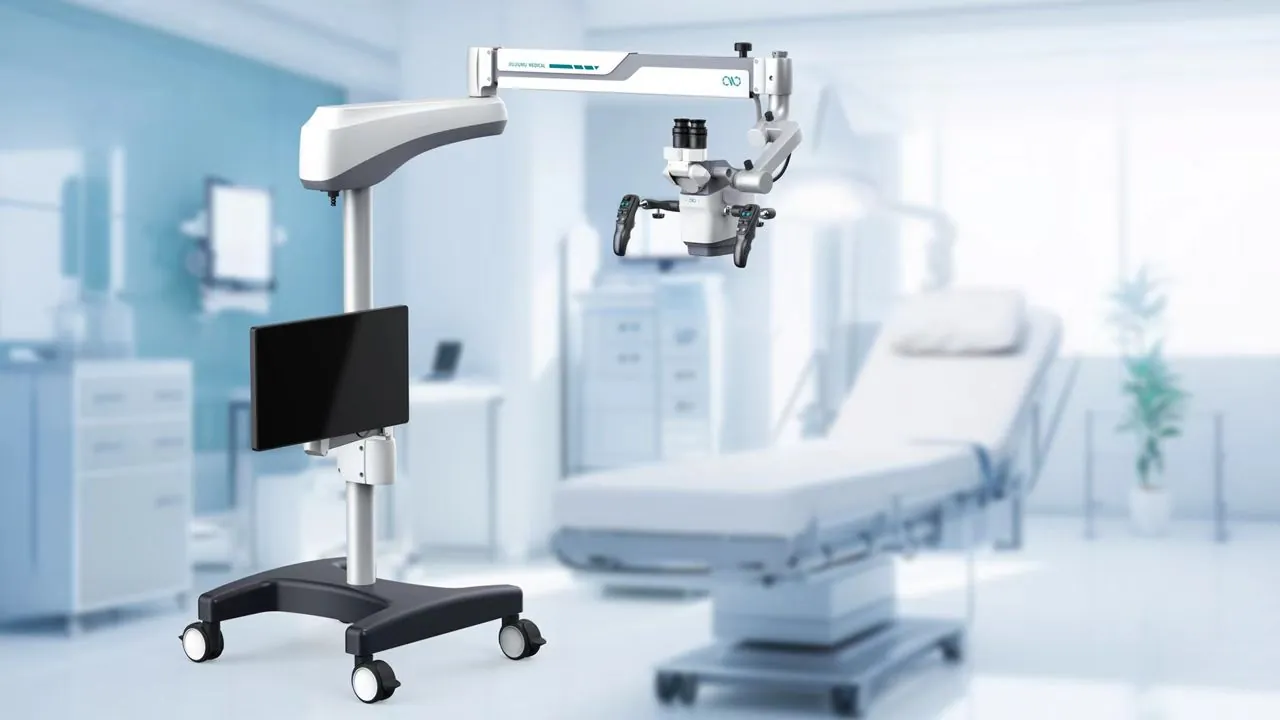

M700 & M700-3D Surgical Microscope

Visualization Without Compromise

No Pro, Max, or Ultra series. Visualization, electrification, and intelligence are standard across the entire product line. Only two configurations:

• M700 (standard)
• M700-3D (supports simultaneous display of 2D, autostereoscopic 3D, and Type-C VR Glasses)

Tech-enabled Equality

Bringing Affordable Digital Surgical Microscopes to Everyone:

1. Premium Visualization System

   • 2D/3D/VR Glasses triple-screen simultaneous display
   • Electric zooming, focusing, and Auto-focusing
   • Electric filter switching and aperture size adjustment

2. Intelligent Control

   • Voice assistant (“Hi Jojo”)
   • Cloud Connectivity and APP Control
   • Interaction with patients
   • Multi-functional handles with joysticks for motorized controls

3. Unbounded Precision

   • Working distance range: 190mm - 270mm - 460mm
   • One-click menu access
   • Electric adjustment of light spot size and filter
   • Photo and video recording capabilities

M700-3D Advanced Features

1. 3D Visualization Options

   • VR Glasses - ROKID Max2 wearable monitor (75g/9oz)
   • Glasses-free 3D with 4K@60Hz resolution
   • Ultra-low 3D latency (<75ms)
   • Binocular image sensors with sub-millisecond real-time synchronization

2. Voice Assistant Capabilities

   • Take a Photo
   • Video Recording
   • Auto Focus
   • Turn Light on/off
   • Filter Switching
   • Increase Brightness

3. Smart OS UI & APP

   • Camera control panel
   • Patient information management
   • Treatment planning
   • Network connectivity

Technical Parameters

• Base Configuration:

  • Continuous zoom system (magnification factor 0.4x-2.5x)
  • 180° variable-angle binocular tube
  • Working distance 190-460mm
  • LED cold light source (CRI >90, luminous flux ≥70,000 lux)
  • Continuously adjustable spot size with orange and green interference filters
  • ±25° pendulum swing
  • ±45° forward/backward tilt
  • 650mm carbon-fiber articulated arm

• M700 Imaging System:

  • One 4K@60 Camera
  • 4K@60Hz 2D output
  • 512GB USB 3.0 Photo and video recording

• M700-3D Imaging System:

  • Twin 4K@60 Cameras
  • Real 3D streaming during operation
  • 4K@60Hz stereoscopic output (latency <75ms)
  • 512GB USB 3.0/SSD Photo and video recording
  • Type-C 3D VR Glasses compatibility
